A Savant Power Storage 20 on a garage wall beside the panel, with a truck charging

For electricians and builders

Savant Power, sized in 200 A blocks.

One parallel system from 200 A to 800 A. We design it, supply the Savant equipment and commission it. A licensed electrician installs it and pulls the permit.

Join the partner list Size a job

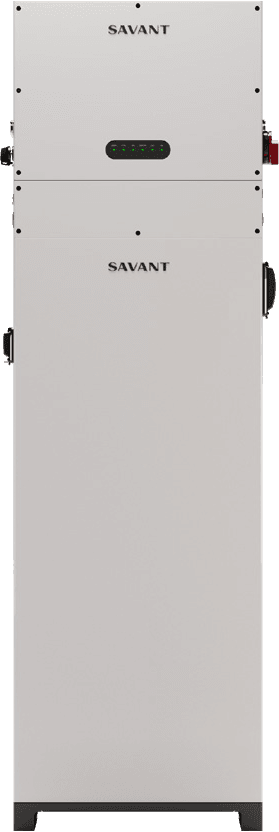

Savant Power Storage 20: inverter on top, 20 kWh battery cabinet below — Power Storage 20. Inverter on top, 20 kWh battery cabinet below. 85.4 in tall.

The block

2 inverters + 1 Power Storage 20 = 200 A of backup

Pass-through	200 A, 100 A per inverter
Inverter output	25 kW, 12.5 kW per inverter
Off grid	12.5 kW continuous per battery stack
Storage	20 kWh rated, 18 kWh usable at 90% depth of discharge
Battery	LiFePO4, 409.6 V nominal
Service	120/240 V split phase, transfer under 70 ms
Solar	17 kW DC per inverter, 2 MPPT, 450 V Voc max
Rapid shutdown	APsmart transmitter built in. APsmart RSD-S-PLC or Tigo TS4-A-F receivers
System size	8 inverters max in parallel, so 4 blocks, 800 A
Environment	32 to 113 °F operating. NEMA 4X, indoor or outdoor
Size	Cabinet 61 x 25.6 x 13 in. Inverter 24.4 x 25.6 x 11 in, 106 lb

Source: Savant Power Storage 20 installation guide 009-2401-02 and spec sheet 009-2477-00.

Plan the install

Space, code and wiring

A clean garage with a Savant Power Storage 20 beside an EV

Space

About 75 in of wall per block: 11.8 in on the closed side, the 25.6 in cabinet, and a 37.6 in bay for battery loading and the second inverter.
36 in clear in front of the gear.
Cabinets come left or right entry, so two blocks can share a loading bay.

Code

40 kWh max inside the house, 80 kWh in a garage (IRC R328.5).
3 ft between battery units unless UL 9540A data allows less.
Smoke alarm in the room. Utah adds a battery sign on the outside of the house.

Wiring

Grid and load combiner panels on parallel systems. 100 A max breaker per inverter.
Equal conductor lengths per unit. Never cross L1 and L2 between units.
Wired Ethernet to each inverter. One E-Stop whip to every inverter.

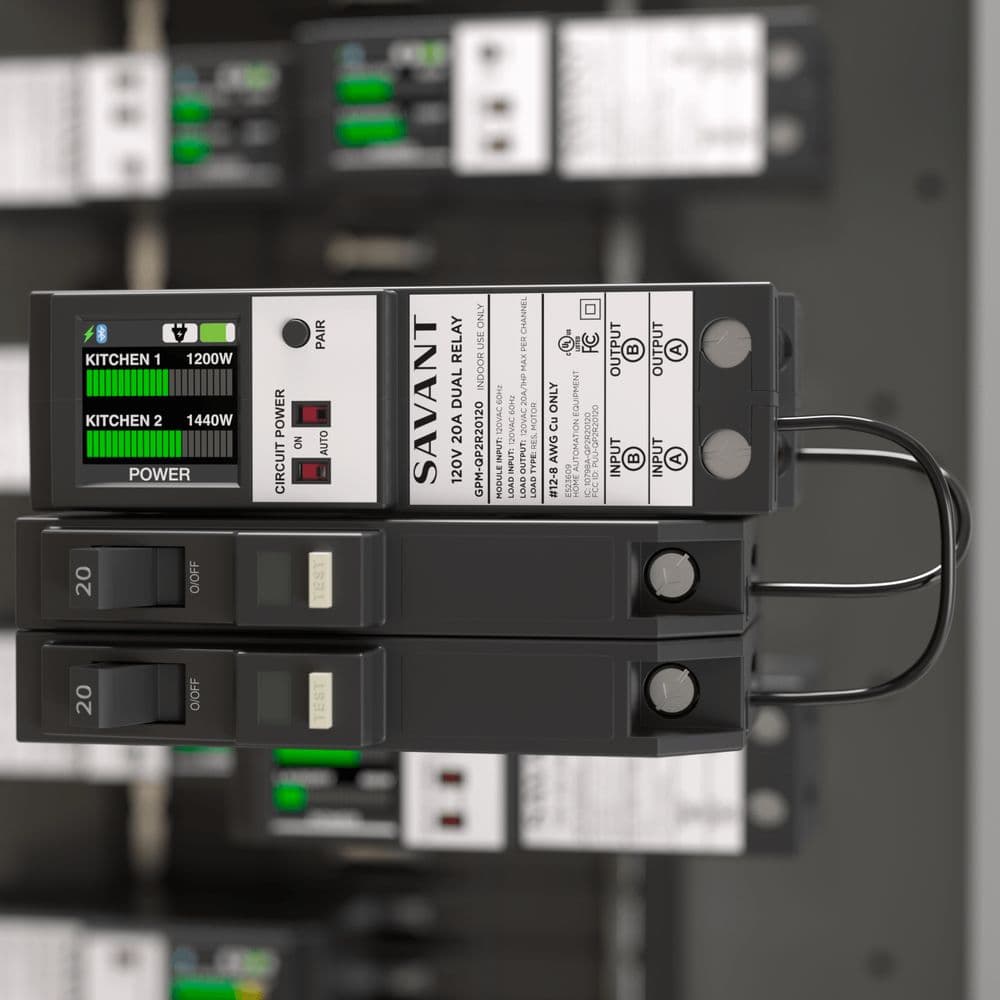

Savant Power Modules installed in a load center

Price

MSRP by the block

Part	Per block	MSRP each
Savant Power inverter, 12.5 kW, 100 A PS-INV-12.5KW-100A-PBC-10	2	$4,700
Power Storage 20 battery stack, 20 kWh PS20-BATT-20KWH-ENCL-03	1	$13,300
One block, 200 A, MSRP		$22,700
Load management kit, 200 A, optional PKG-LOADMGMT-QP200A-00	1	$2,680

MSRP is list price, not partner price. Partner pricing comes with the quote. Combiner panels, E-Stop, network switch, rapid-shutdown receivers, wire, labor and tax are separate.

Size a job

Blocks, run time and MSRP

Backed-up amps

One block = 2 inverters + 1 Power Storage 20. Each inverter passes 100 A.

Load during an outage

Pick a starting point, or enter your own load in kW.

Add Savant load management, one kit per 200 A ($2,680 MSRP each). It lets you watch and control circuits, and stretch run time by turning off the big loads.

Equipment

2blocks

4 inverters, 2 Power Storage 20

Off-grid power

25kW

continuous, from the batteries

Run time

4.0hours

36 kWh usable at 9 kW

Equipment MSRP

$45,400

product only

Part	Model	Qty	MSRP each	MSRP
Savant Power inverter, 12.5 kW, 100 A	PS-INV-12.5KW-100A-PBC-10	4	$4,700	$18,800
Power Storage 20 battery stack, 20 kWh	PS20-BATT-20KWH-ENCL-03	2	$13,300	$26,600
Equipment total, MSRP				$45,400

400 A of backup. 50 kW of inverter, 40 kWh rated storage. One block is $22,700 MSRP.Run time uses 18 of each battery's 20 kWh at a steady load. Solar recharges the batteries and stretches it.Prices are manufacturer list price (MSRP) for equipment. Installation, electrical work, combiner panels and tax are separate.

Partner list

Work with us on power

Partners get design support on every job, partner pricing on Savant equipment and a single point of contact from bid to commissioning.
